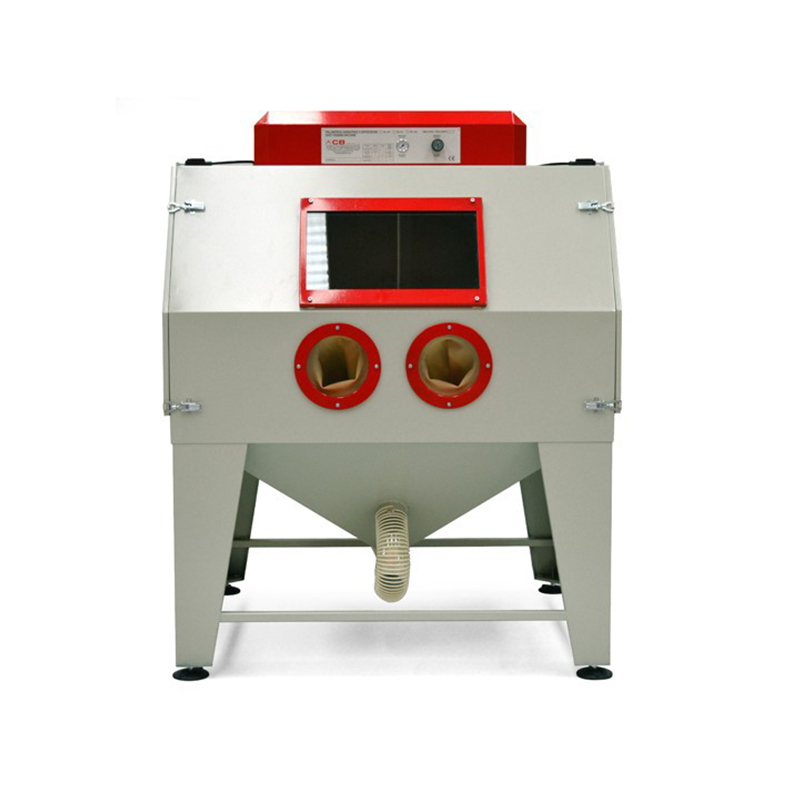

PAL4-XL vacuum shot peening booth
Shot peening and blasting booths have been designed and produced to guarantee multiple operations in the field of surface finishing: shot peening, decorative sandblasting, metal hardening, deburring, surface treatments, cleaning
Machining operations on parts vary depending on the type of abrasive used: corundum, sand, glass microspheres, synthetic or vegetable granules, metal abrasives
For maximum functionality this machine can be equipped with the following accessories:
- dust collector filter with self-cleaning compressed air system
- loading cart
- rotary table
- abrasive regenerating cyclone
Technical features
Useful measures
| Front | 1440 mm |
| Side | 1090 mm |
| Height | 800 mm |
Overall measures
| Front | 1480 mm |
| Side | 1600 mm |
| Height | 1900 mm |
| Booth access | side, left and right |
| Aspirator | 400 V 50 Hz 0.75 kW |
| Booth light | led 20 W |
| Air consumption | injector ∅ 3 mm – 600 l/min ∅ 3.5 mm – 800 l/min ∅ 4 mm – 1200 l/min |
| Operating pressure | from 1.5 to 8 bar |
| Tungsten carbide nozzle | ∅ 6 – 8 or 10 mm |
| Weight | 300 kg |
Booth conversion from vacuum to pressure
Pressure peening and blasting booths, unlike traditional vacuum booths, shorten processing times and engrave parts more easily
The pressure booths can be equipped with a wear-resistant rubber coating to increase their resistance and with a pressure regulator to control the abrasive output speed, with the following advantages:
- possibility of working on different surfaces (aluminium, iron, glass, stainless steel, etc.)
- obtain deep engravings or light polishing
- avoid nicking workpieces
